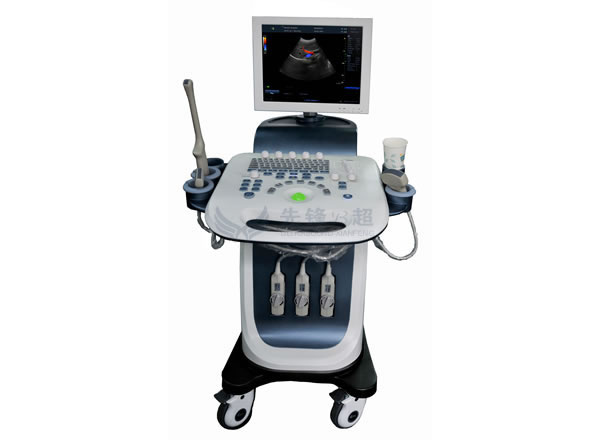

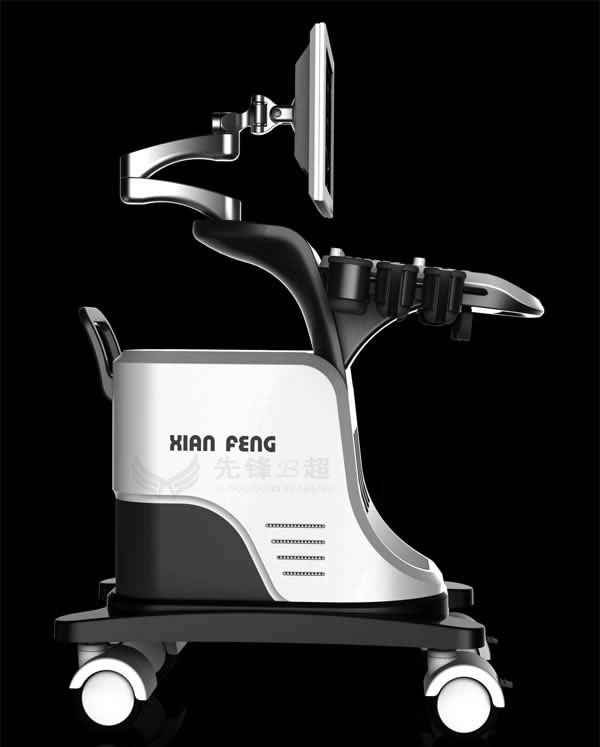

XF7700 Trolley Color Doppler Ultrasound Scanner

I Functional Features

*B/2B/4B/M/CFM/PDI/PW

*THI(Tissue Harmonic Imaging)

*Real-time 2D and Doppler Double Synchronization.

*Real-time 2D ,Doppler and Color triple synchronization.

*Free hand 3D imaging(Optional)

*Four-dimensional Imaging (4D Optional)

*Automatic measurement and analysis vascular intima

*Compound Imaging

*Probe Interface:Two Active Probe Interface

*Multimedia and peripheral devices:Compact Disc-Recordable,USB portable storage device.

Main Functions

Having a full digital beam forming technology

Scanning mode: Convex array, lumen, high-frequency linear array, phased array;

Dynamic range: 0~120dB adjustable;

Display mode: BB/BMB/MCFMCMF/BPDIB/PW, total eight mode;

Application mode: abdomen, gynecology, obstetrics, superficial organ, urologist, heart and user defined model 1-4, total ten models;

Image mode: digital beam forming, tissue harmonic imaging;

Acoustic output: Mechanical index and thermal index real-time display;

Acoustic powerStep is adjustable, real-time display;

Gray scale: 256 scales;

Depth display: 250mm;

B/D dual-purpose: linear array: B/PWD; convex array: B/PWD;

Pseudo color processing: 16 kinds of pseudo color encoding can optional;

Gain adjusts: 8 segments TGC, B/M/D/C is independently adjustable; TGC curve can show and hide automatically;

Image magnification: picture in picture zoom in and zoom part function;

Image processing: Edge enhancement: Multilevel adjustable

Frame average: Multilevel adjustable

Line average: Multilevel adjustable

Focus Optimization: Multilevel adjustable

Gray Restrain: Multilevel adjustable

Gamma correction: Multilevel adjustable

Contrast: Adjustable

Brightness: Adjustable

Self-motion optimize function: Built-in multiple check type, according to different inspection organs, preset best image check condition, reduce the adjusting operation keys;

One-click optimization function: preset several parameters adjusting focus on a button, a key to realize image fast optimization;

Measurement and calculation: B mode routine measurement:

Distance, circumference, area, volume, angle, ratio, and stenos rate.

M mode routine measurement: Heart rate, time, distance, speed, ratio, etc.

Gynecology measurement: Uterus, cervix, endometrial, ovary, follicular.

Obstetrics measurement:

EGA, ETD, fetal weight estimation, AFI index, OB report (including OB tables).

Cardiology measurement: LV measurement.

Urology measurement:

Prostate volume, displacement volume, bladder capacity, and residual urine output.

PW measurements: Time, speed, Heart Rate, RI, PI, etc.

Other measurement: Slice volume measurement, hip joint angle measurement.

Image storage: Image storage, video storage, cine loop, disk storage capacity≥160G;

Patient data: Medical record management, report inquiry and printing, image video output HDD USBOptional DVD-RW)、built-in ultrasound workstation;

Reporting system: automatic report generation system, and can be full screen characters in both Chinese and English editor;

Output interface: SR323USBDICOM interface;

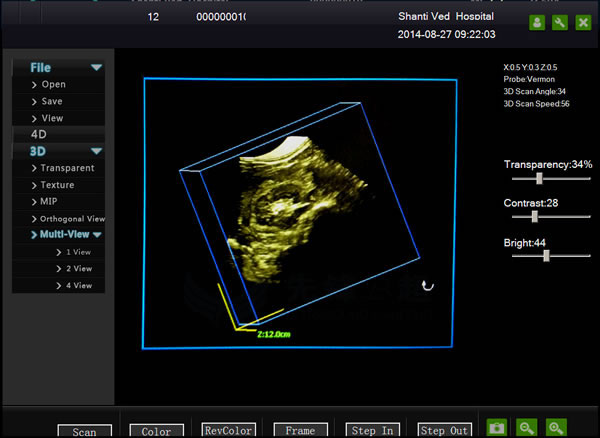

1.3D imaging technology

2. Sound velocity imaging technology optimization

3.Color Doppler Energy(CDE)

4.Pulse Wave Doppler imaging(PW)

5.Color Doppler resolution enhancement

6.Panoramic imaging,space compound imaging

7.Adaptive speckle noise suppression techniques

8.Ergonomic design,All-round display angle adjustment

9.Imaging optimization technology;Compound enhance technology

10.Imaging processing technology

11.Multi-beam parallel processing technology

12.Tissue harmonic imaging

13.Three activated ports,15/17'HR medical monitor

14.One Touch Optimize under different modes

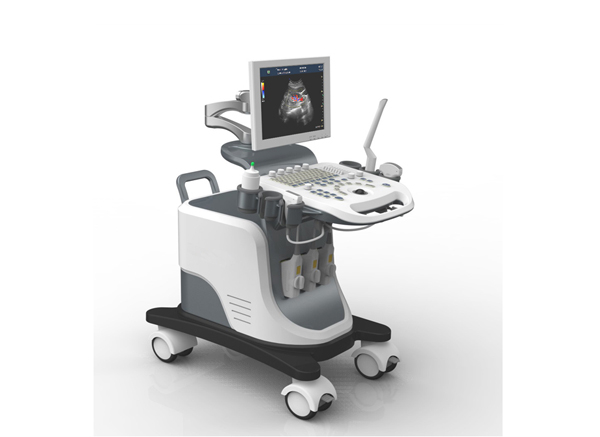

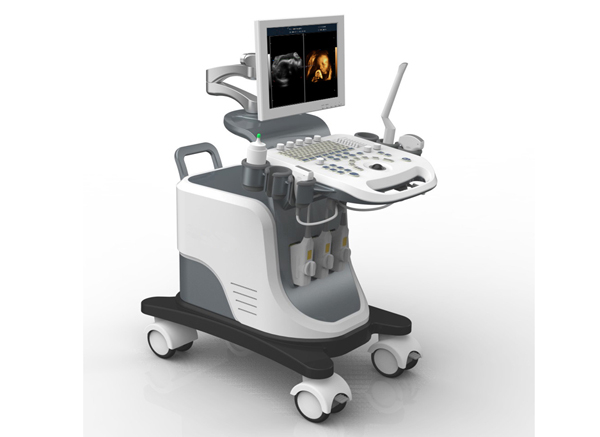

XF7700 3D/4D Trolley Color Doppler Ultrasound Scanner

II Others

Displayer: 15 inch LED color display

Running hours: ≥8h;

Input power: ≤320V A;

Host weight: about 75 kg;

Host appearance size:1090x700x1130(lengthx widthx height) (mm3);

III Standard Configuration

1.One host machine

2.15 inch High-resolution display

3.3.5MHZ convex array probe

4.USB port

5.Trolley

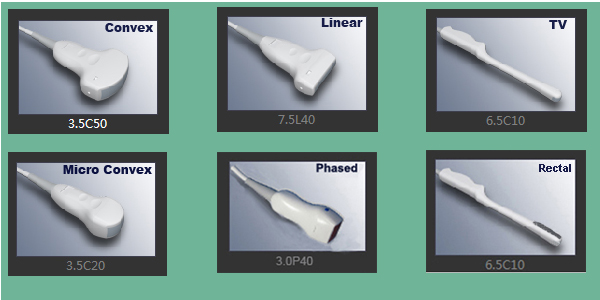

IV Optional probes
