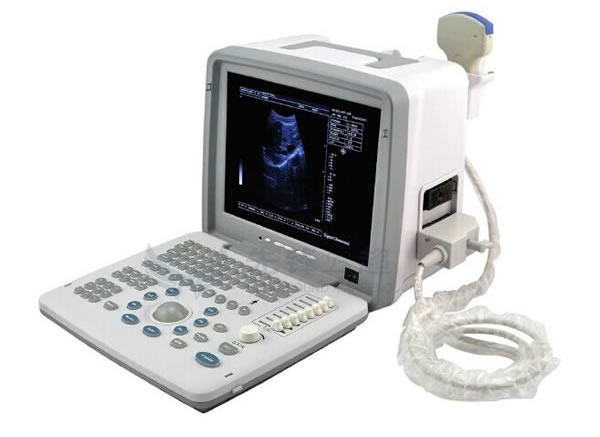

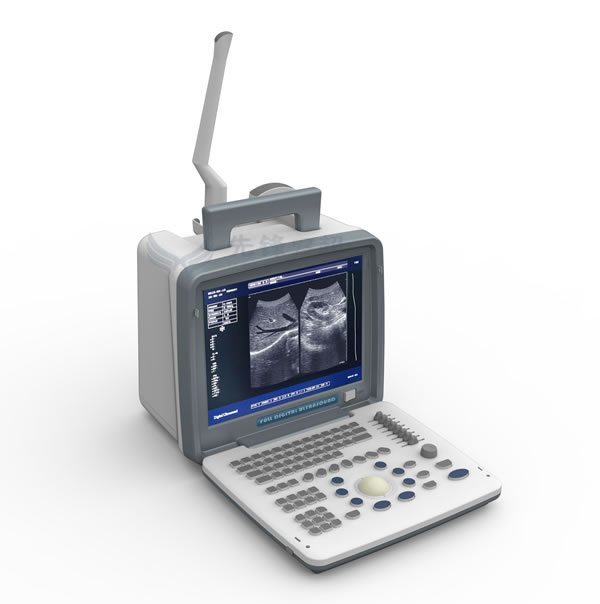

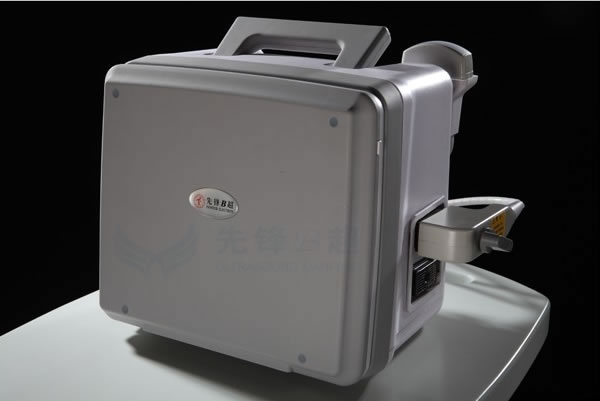

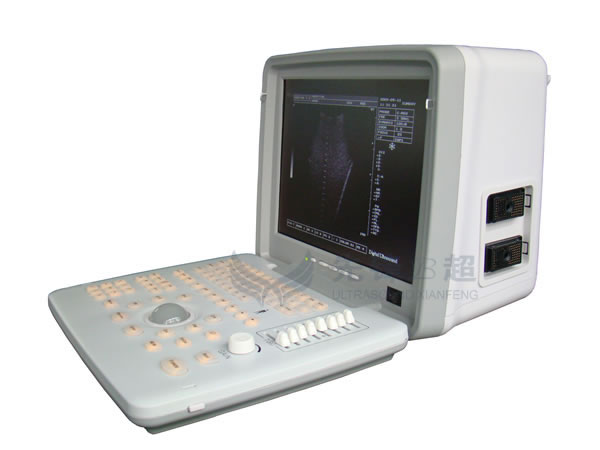

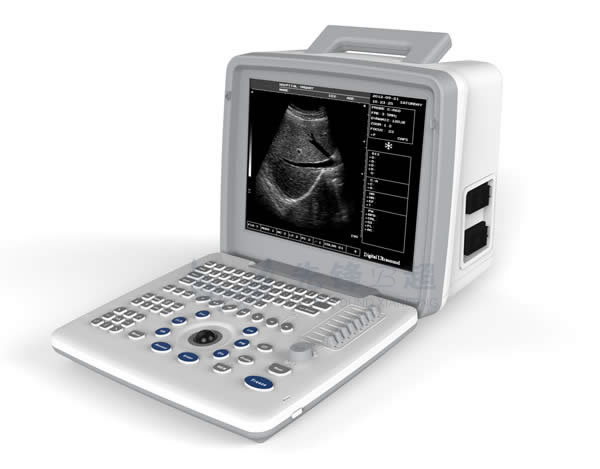

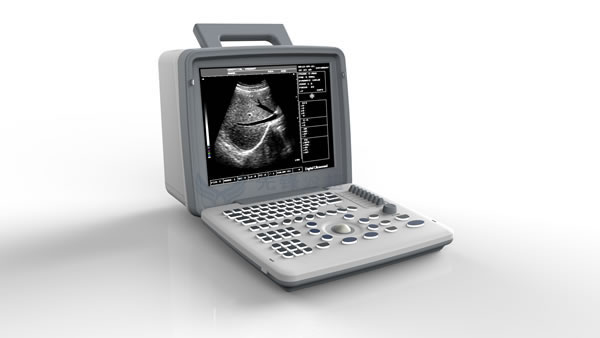

XF300 LED Portable Ultrasound Scanner

I.Specification:

ModelXF300 LED Portable VET B    Scanner
Display Modes

3.5MHz/R60 convex array probe:B,B/B,4B,B+M,M

5 MHz/R20 Dimpling array probe:B

6.5MHz/R13 Dimpling array probe:B
7.5 MHz/L40 Line array probe:B

Image Mutiplying    Factor3.5MHz/R60 convex array probe: x0.8, x1.0, x1.2, x1.5,x1 .8, x2.0
( 6modes)x0.8, x2.0 (display penetration depth)
6.5MHz/R13 Dimpling array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)
7.5MHz/L40 Line array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)
E-zoommagnify 2 times of real time image
Dynamic Range0~120dB ajustable
Focus Position1,2,3 and 4-segments dynamic electron focusing
Image Processing:γcorrection, frame correlation,point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.
According to the user’s pattern style preference, the    parameter will be set up automatically and saved ,Boot default this parameter. This default of    parameter can aslo be modified in the menue.
Frequency Conversion:2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of    frequency conversion
frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0  MHz/7.5MHz can match high frequency probe
Measuring FunctionDistance,circumference/area (method of ellipse, method  of loci), volume, heart rate, gestational weeks (BPD,GS,CRL,FL,HL,OFD,TTD,AC ),  expected date of confinement and fetus weight, etc.
Annotation Functionhospital name, patient’s name, age and gender
64 body marks (with probe’s position);
Full-screen character annotation; Real-time clock    display
Puncture Guide3.5MHz convex array probe can display puncture guide line in B mode
Gain Control8 segments TGC and overall gain can be adjusted respectively
Image Polarityleft and right flip, black and white flip, up and down flip
Capacity Cine Loopreal time display 256 consecutive images which are memorized successively
Image Playbackseries playback or check one by one
Permanent Storage:128 images
Output InterfaceVGA video output offers connection to SVGA color display
PAL video output offers connection to PAL display and printer
video image recorder and image workstation, etc
USB PortOffers storing images in USB flash disk

II Application:

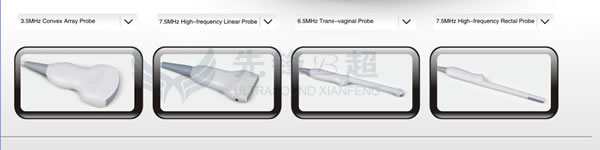

Optional probes

III Features:

1. Mass memory , cine loop and permanent storage.

2. Radium  Caved buttons and Silicon backlit buttons to be chosen;

3. Intelligent   fluorescence trackball.

4. 8-segment   TGC control. Overall Gain control

5. 2 USB ports , Upgraded and expandable printer function;

6. 2probe connectors. Probe automatic identfication;

7. 2SVGA   video outputs and 21 PAL video outputs offer connection to video image   recorder and image workstation. etc.

8. Report   page is generated automatically.

9. According to the user’s   pattern style preference, the parameter will be set up automatically and   saved ,Boot default this parameter. This default of parameter can aslo be   modified in the menue.
